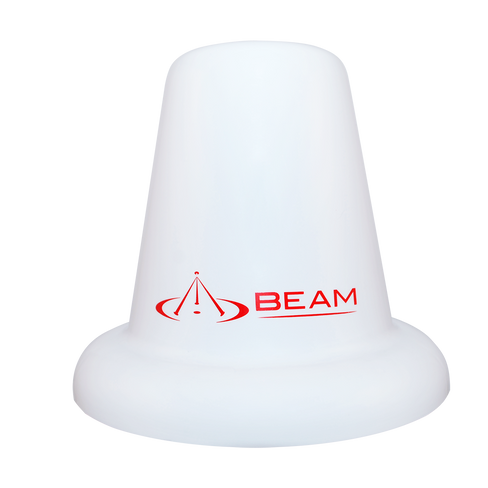

Beam Inmarsat Fixed Directional Passive Antenna
The Beam Inmarsat Fixed Directional Passive Antenna is designed for
reliable satellite communication in fixed installations where consistent
performance is critical.
Its directional design allows for targeted signal reception, helping
maintain strong and stable connectivity when aligned correctly with the
satellite.
Built for outdoor use, it features a durable, weather-resistant
construction suited to marine, transport, and remote site applications.
This antenna is a practical solution for permanent setups that require
dependable Inmarsat communication in off-grid environments.
Beam Inmarsat Fixed Directional Passive
Antenna
Antenna
SPECIFICATIONS;
Weight: 0.9 kg
Dimensions: 231 x 142 x 142 mm
Material: ASA

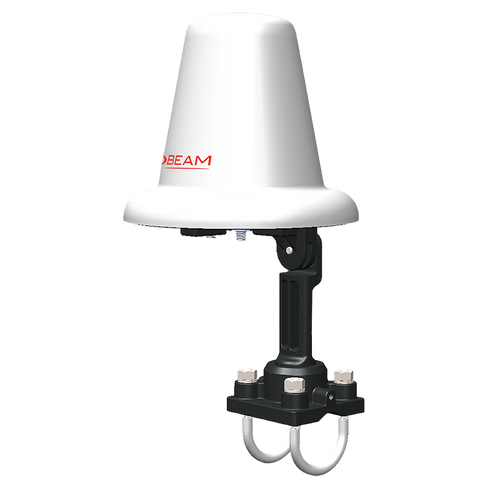

Mounting Type: Fixed base station (pole mount)
Transmit Frequency (Operational): 1626.5 to 1660.5 MHz
Transmit Frequency (Extended): 1668.0 to 1675.0 MHz
Receive Frequency (Operational): 1525.0 to 1559.0 MHz
GNSS Frequency: 1575.42 ± 10.25 MHz
Receive Frequency (Extended): 1518.0 to 1525.0 MHz
Inmarsat Connector: SMA Female
GNSS Connector: SMA Female
Operating Temperature: -40°C to +70°C,kit_contents
KIT CONTENTS;
Directional/Fixed Antenna
2 x U Bolts
4 x Large Flat Washers
4 x Nuts
Screw with Hex
Split Washer
Mounting Bracket
Mounting Pole
Allen Key,features
FEATURES;
Directional signal focus: Designed to improve signal stability when aligned
for fixed installations.
Passive design: No power required, making installation simple and low
maintenance.
Built for harsh environments: Durable construction suited to outdoor and
marine conditions.
Reliable Inmarsat performance: Supports consistent voice and data
communication in remote locations.
Fixed installation solution: Ideal for permanent setups on poles, masts, or
structures.
Beam Inmarsat Fixed Directional Passive
Antenna
