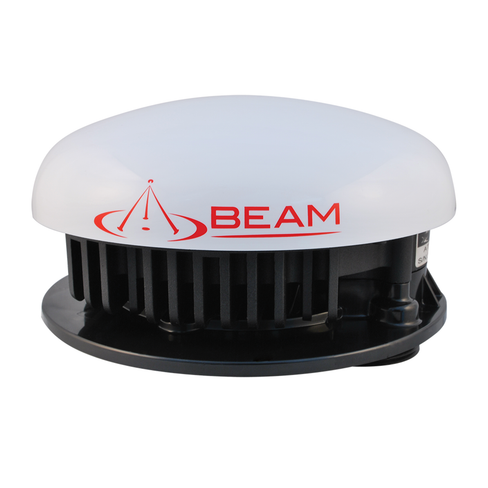

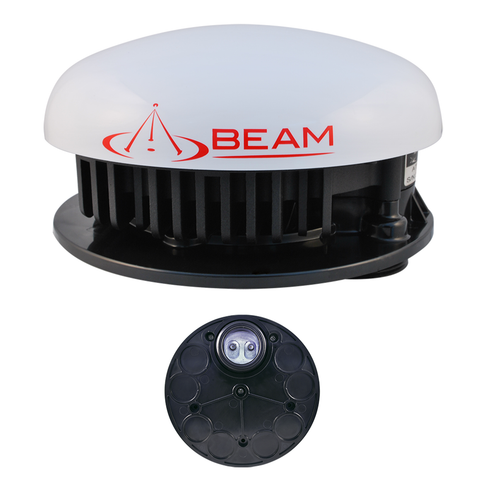

ISD720 Inmarsat Beam Bolt Mount Transport Antenna (Active)
The ISD720 Inmarsat Beam Bolt Mount Transport Antenna is a
high-performance, Inmarsat type-approved active antenna designed to support
GSPS (Global Satellite Phone Service) applications.
Engineered primarily for vehicular installations, the ISD720 is also
suitable for fixed base station deployments where a secure, bolt-mounted
antenna solution is required.

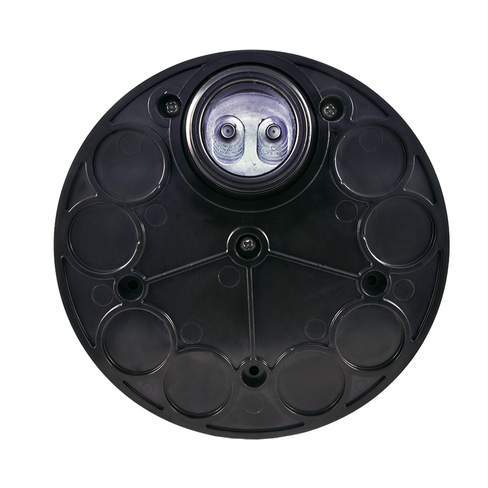

The antenna supports both horizontal and vertical cable entry, offering
flexible installation options across a wide range of vehicle and
infrastructure setups.
Housed in a rugged, weather-resistant enclosure, the ISD720 delivers
consistent and reliable satellite performance in harsh operating
environments. It is fully compatible with all Beam Inmarsat IsatDock and
Oceana terminals and must be used exclusively with Beam-certified active
antenna cables to ensure compliance and optimal performance.
ISD720 Inmarsat Beam Bolt Mount Transport
Antenna (Active)
Antenna (Active)
SPECIFICATIONS;
Weight: 0.87 kg
Dimensions: 295 × 575 × 575 mm
Mounting Type: Fixed base station / bolt mount
Transmit Frequency (Operational): 1626.5 – 1660.5 MHz
Transmit Frequency (Extended): 1668.0 – 1675.0 MHz
Receive Frequency (Operational): 1525.0 – 1559.0 MHz
Receive Frequency (GNSS): 1575.42 ± 10.25 MHz (GPS L1)
Receive Frequency (Extended): 1518.0 – 1525.0 MHz
Impedance: 50 Ohms
GSPS Connector: SMA Female
GNSS (GPS) Connector: SMA Female
Operating & Storage Temperature: -40°C to +70°C,kit_contents
KIT CONTENTS;
ISD720 Transport Antenna

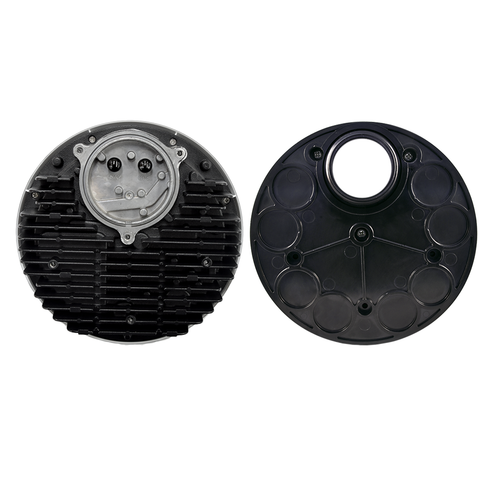

Bolt Mounting Plate
2 × SMA–SMA Right-Angled Adaptors
SMA RF Connector Spanner
3 × Small Screws
3 × Large Screws
6 × Small Split Washers
6 × Small Flat Washers,features
FEATURES;
Inmarsat Type Approved: Fully compliant for GSPS satellite communication
services.
Active Antenna Design: Ensures strong and reliable satellite signal
reception.
Bolt Mount Installation: Provides secure and stable mounting for vehicles
or fixed structures.
Flexible Cable Entry: Supports both horizontal and vertical cable
routing.
Omni-Directional Coverage: Maintains satellite connectivity from all
directions.
Rugged Low-Profile Housing: Weather-resistant design for harsh operating
environments.
Terminal Compatibility: Designed for use with Beam Inmarsat IsatDock and
Oceana terminals.
ISD720 Inmarsat Beam Bolt Mount Transport
Antenna (Active)
