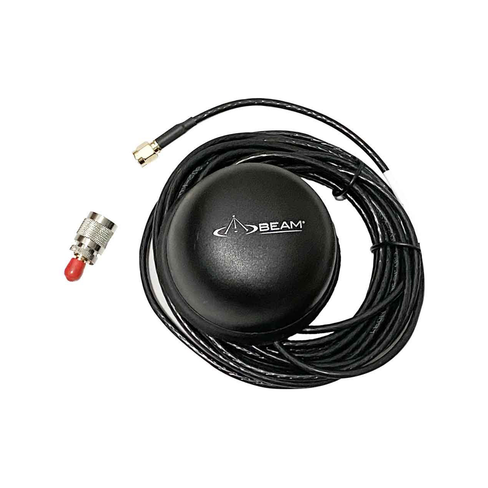

Beam Iridium Bolt Mount Antenna
The Beam Iridium Bolt Mount Antenna is designed to provide a stable and
reliable satellite connection for Iridium devices in both fixed and mobile
installations.
With its bolt-mount design, it is suited to permanent installations on
vehicles, vessels, and fixed sites where a secure and consistent antenna
position is required.
Built for outdoor use, it features a durable, weather-resistant
construction that helps maintain performance in harsh and remote
environments.
This antenna is a practical choice for setups that require dependable
satellite communication with a clean, fixed mounting solution.
Beam Iridium Bolt Mount Antenna
SPECIFICATIONS;
Weight: 0.29 kg
Dimensions: 77.3 x 36.5 mm
Mounting Type: Bolt Mount
IP Rating: IP67
Material: ABS
Frequency Range: 1616 to 1626.5 MHz
Polarisation: Right-hand circular
Axial Ratio: 3 dB max
Peak Gain: ~4.5 dBi
Impedance: 50 Ohms
VSWR: ~1.2:1
Connector: TNC-M
Cable Length: 5 m (integrated)
Operating Temperature: -40°C to +85°C,kit_contents
KIT CONTENTS;
Beam Iridium Bolt Mount Antenna (RST220)
SMA to TNC Adapter,features
FEATURES;
Secure bolt-mount design: Provides a fixed and stable installation for
vehicles, marine setups, and permanent sites.
Reliable satellite performance: Supports consistent Iridium signal
connectivity in remote and low-coverage areas.
Built for outdoor conditions: Weather-resistant construction helps maintain
performance in harsh environments.
Clean installation solution: Ideal for setups where a permanent,
low-profile antenna is preferred over temporary mounts.
Versatile application: Suitable for both mobile and fixed installations
across a range of industries and use cases.
