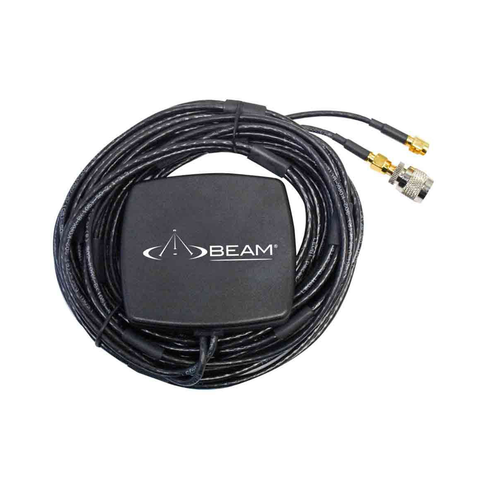

Beam Iridium Magnetic Dual Mode Antenna (Lightweight)
The Beam Iridium Magnetic Dual Mode Antenna is a lightweight and practical
solution for maintaining reliable satellite communication in mobile
environments.
Designed with a magnetic base, it can be quickly mounted to vehicles or
other metal surfaces without permanent installation, making it ideal for
temporary setups and on-the-go use.
Its dual-mode capability supports both Iridium satellite communication and
GPS functionality, allowing compatible systems to maintain both communication
and positioning from a single antenna setup.
Compact and easy to deploy, this antenna is well suited to vehicle-based
use, field work, and remote travel where dependable connectivity is
important.
Beam Iridium Magnetic Dual Mode Antenna
(Lightweight)
Beam Iridium Magnetic Dual Mode Antenna
(Lightweight)
Beam Iridium Magnetic Dual Mode Antenna
(Lightweight)
(Lightweight)
SPECIFICATIONS;
Weight: 0.27 kg
Dimensions: 80 x 74 x 15.7 mm
Mounting Type: Magnetic
IP Rating: IP67
Material: ABS
Iridium Frequency Range: 1616 to 1626.5 MHz
GNSS (GPS) Frequency: 1575.42 ± 5 MHz
Polarisation: Right-hand circular
Axial Ratio: 3 dB max
Iridium VSWR: ~1.2:1
GNSS VSWR: ?1.4:1
Iridium Connector: TNC-M
GNSS Connector: SMA-M
GNSS Voltage: 1.5V to 3.6V DC
GNSS Current: 9 mA @ 2.7V
Operating Temperature: -40°C to +85°C,kit_contents
KIT CONTENTS;
Beam Iridium Magnetic Dual Mode Antenna (RST250)
SMA to TNC Adapter,features
FEATURES;
Dual-mode functionality: Supports both satellite communication and GPS from
a single antenna setup.
Magnetic mount design: Easily attaches to metal surfaces for quick and
flexible installation.
Lightweight and portable: Easy to transport and deploy for temporary or
mobile use.
Reliable mobile performance: Helps maintain consistent connectivity while
travelling in remote areas.
Outdoor-ready build: Designed to handle exposure to weather and demanding
environments.
Beam Iridium Magnetic Dual Mode Antenna
(Lightweight)
